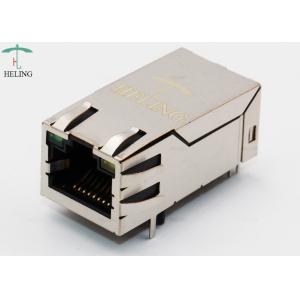

1 x 1 Single Port EMI Tabs 1000 Base T RJ45 Connector with Green
Yellow Lights
Quick details:
- Model Number : MJ5A-B211-RSL15T148-1
- 8P8C one port
- Tab up
- LED : Green Yellow, can be changed as your request.
- Performance Catagory : 1000 Mb
- THT Mounting
Documents:
*** Click Here To Download The Drawings
Product Parameter :
| Part Number: | MJ5A-B211-RSL15T148-1 |
| Product Family: | 1000 Base T RJ45 |
| Overview: | THT 1000 Base T RJ45 Jack 1x1 8P8C Modular Jack |
| Description: | 8 core 1x1 ports 1000 Base T RJ45 connector, with Shielded tabs |
| | Right Angle / Side Entry, THT , Operating temprature range:
-40℃-70℃ |
| | |
| General |
| Series: | 1000 Base T RJ45 |
| Numbers of ports: | 1x1 |
| Orientation: | Right Angle (Side entry) |
| Pin type: | THT solder |
| Positions/ Loaded contacts | 8P8C |
| Latch: | Tab up |
| LEDs: | Yes |
| Shielded: | YES |
| Jack Height: | 9.75mm |
| Magnetic: | Yes |
| Performance category: | 1000 Base T |
| Power over Ethernet(PoE): | optional |
| Physical |
| Color-Resin: | Black |
| Durability(mating cycles max): | 750 |
| Material | Metal: | Phosphor bronze |
| Resin: | Liquid crystal polymer |
| Plating mating: | Gold over Nickel |
| Plating termination: | Gold Flash |
| Plating min- mating: | 3u" / 6u"/15u"/30u" optional |
| Net Weight: | TBA |
| PCB: | FR4 |
| PCB locator: | Yes |
| PCB retention: | None |
| PCB Thickness- Recommended | 1.6mm |
| Packaging type: | Tray |
| Temperature range: | -40℃-70℃ |
| RoHS compliant | YES, RoHS AND Halogen-Free |
| Electrical |
| Current rating: | 1.5AMPS |
| Voltage rating: | 125V AC |
| Insulation Resistance: | 500MΩ mini |
| Withstand voltage: | 1000V RMS 60Hz |
| Contact Resistance: | 50mΩ Max |
| Grounding to PCB: | YES |
| Grounding to Panel: | YES |
